Hyper-V 13 min read 16 Feb 2013

Hyper-V Replica PowerShell CMDLETS

MN

Marcos Nogueira

The following Hyper-V PowerShell cmdlets apply to Hyper-V Replica. ****

Cmdlet	Complete-VMFailover
Description	This cmdlet completes the Failover process of the virtual machine. The virtual machine’s current recovery point is committed and all other recovery points are removed. Failover cannot be cancelled once the recovery points are removed.
Verb-Noun	Complete-VMFailover
Syntax	Complete-VMFailover [-VMName] [-ComputerName ] [-PassThru]
Example	_Complete-VMFailover -VMName C0-FIN-FS1_

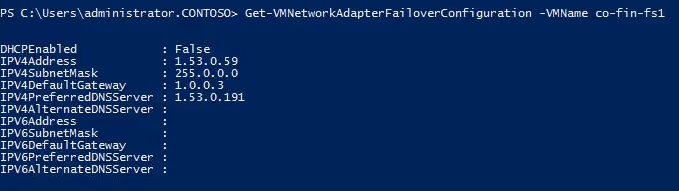

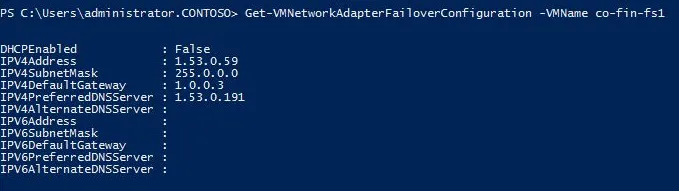

Cmdlet	Get-VMNetworkAdapterFailoverConfiguration
Description	Retrieves the Failover IP settings on a virtual machine network adaptor.
Verb-Noun	Get-VMNetworkAdapterFailoverConfiguration
Syntax	Get-VMNetworkAdapterFailoverConfiguration [-VMName] [[-VMNetworkAdapterName] ] [-ComputerName ]
Example

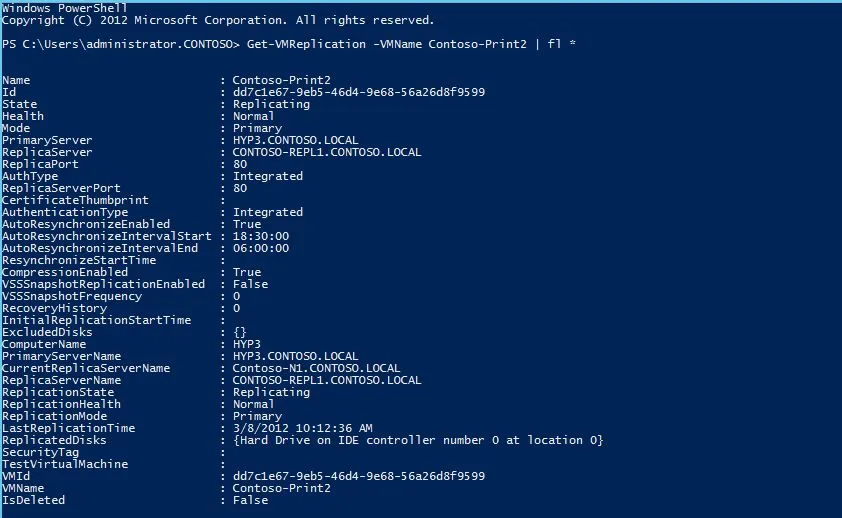

Cmdlet	Get-VMReplication
Description	Retrieve the replication relationship information of one or more virtual machines.
Verb-Noun	Get-VMReplication
Syntax	Get-VMReplication [[-VMName] ] [-ComputerName ] [-ReplicaServerName ] [-PrimaryServerName ] [-State ] [-ReplicationTag ]
Example

Cmdlet	Get-VMReplicationAuthorizationEntry
Description	This cmdlet returns the details of an authorization entry as identified by the input parameter. The possible ways to get a particular authorization entry is by using AllowedPrimaryServer, or security tag.
Verb-Noun	Get-VMReplicationAuthorizationEntry
Syntax	Get-VMReplicationAuthorizationEntry [[-AllowedPrimaryServer] ] [-ComputerName ] [-ReplicaStorageLocation
Example	_Get-VMReplicationAuthorizationEntry -AllowedPrimaryServer hyp3.contoso.local -ReplicaStorageLocation e:\VirtualMachines -SecurityTag CONTOSO_

Cmdlet	Get-VMReplicationServer
Description	This cmdlet retrieves the replication settings of the Replica server. If the server has not been configured as replica server, then the command returns default object.
Verb-Noun	Get-VMReplicationServer
Syntax	Get-VMReplicationServer [[-ComputerName] ]
Example

Cmdlet	Import-VMInitialReplication
Description	This cmdlet is used on the replica server to import the IR files transferred by admin using external media. The IR files are expected to be accessible using the specified path.
Verb-Noun	Import-VMInitialReplication
Syntax	Import-VMInitialReplication [-VMName] [-ComputerName ] [-Path] [-PassThru] [-AsJob]
Example	_Import-VMInitialReplication -VMName CO-LEGAL-FS11 -Path I:\Replicas\CO-LEGAL-FS11_B410F33F-55E1-44CB-A81F-6D60F408A756_

Cmdlet	Measure-VMReplication
Description	This cmdlets gets the statistics of VMReplication.
Verb-Noun	Measure-VMReplication
Syntax	Measure-VMReplication [[-VMName] ] [-ReplicaServerName ] [-ComputerName ] [-ReplicationTag ] [-State ] [-PrimaryServerName ]
Example

Cmdlet	New-VMReplicationAuthorizationEntry
Description	This cmdlet creates a new authorization entry for the recovery server. The authorization entry consists of the following - AllowedPrimaryServer, ReplicaStorageLocation, KeepPrimaryStorageLocation, and SecurityTag
Verb-Noun	New-VMReplicationAuthorizationEntry
Syntax	New-VMReplicationAuthorizationEntry -KeepPrimaryStorageLocation [-AllowedPrimaryServer] [-ComputerName ]
Example	_New-VMReplicationAuthorizationEntry hyp3.contoso.local -ReplicaStorageLocation d:\ReplicaStorage DEFAULT_

Cmdlet	Remove-VMReplication
Description	This cmdlet is used to remove the replication relationship of a virtual machine. Replication relationship should be individually removed from both primary and replica virtual machines.
Verb-Noun	Remove-VMReplication
Syntax	Remove-VMReplication [-VMName] [-ComputerName ] [-PassThru]
Example	_Remove-VMReplication -VMName CO-FIN1-FS1_

Cmdlet	Remove-VMReplicationAuthorizationEntry
Description	This cmdlet enables the admin to remove an authorization entry from the Replica server, rescinding authorization of replication attempts made against the primary server associated with the entry.
Verb-Noun	Remove-VMReplicationAuthorizationEntry
Syntax	Remove-VMReplicationAuthorizationEntry [-AllowedPrimaryServer] [-ComputerName ] [-PassThru]
Example	_Remove-VMReplicationAuthorizationEntry -AllowedPrimaryServer hyp3.contoso.local_

Cmdlet	Reset-VMReplicationStatistics
Description	This cmdlet resets all the replication statistics for a specific virtual machine. These statistics can be retrieved using the Measure-VMReplication cmdlet.
Verb-Noun	Reset-VMReplicationStatistics
Syntax	Reset-VMReplicationStatistics [-VMName] [-PassThru] [-ComputerName ] [-WhatIf] [-Confirm]
Example	_Reset-VMReplicationStatistics -VMName Contoso-Print1_

Cmdlet	Resume-VMReplication
Description	This cmdlet is used to resume replication of the virtual machine that is passed as input and are paused currently OR used to start resynchronization for a suspended/critical state virtual machine.
Verb-Noun	Resume-VMReplication
Syntax	Resume-VMReplication [-VMName] [-ComputerName ] [-ResynchonizeStartTime ] [-Resynchronize] [-PassThru]
Example	_Resume-VMReplication -VMName CO-EXEC-DATA1_

Cmdlet	Set-VMNetworkAdapterFailoverConfiguration
Description	Configures the Failover IP settings for the n/w adapter. These IP settings will be applied to the virtual machines’s operating system whenever the virtual machines is started as part of failover.
Verb-Noun	Set-VMNetworkAdapterFailoverConfiguration
Syntax	Set-VMNetworkAdapterFailoverConfiguration [-VMName] [[-VMNetworkAdapterName] ] [-ComputerName ] [-IPv6SubnetPrefixLength ] [-IPv6Address ] [-IPv6DefaultGateway ] [-IPv6AlternateDNSServer ] [-IPv6PreferredDNSServer ] [-IPv4SubnetMask ] [-IPv4Address ] [-IPv4DefaultGateway ] [-IPv4AlternateDNSServer ] [-IPv4PreferredDNSServer ]
Example	A good example would be to use another Hyper-V cmdlet (Get-VMNetworkAdapter) to get the adapter and then make the setting changes - Get-VMNetworkAdapter -VMName CO-EXEC-DATA1 \| Set-VMNetworkAdapterFailoverConfiguration -IPv4Address 1.53.0.170 -IPv4SubnetMask 255.0.0.0 -IPv4DefaultGateway 1.0.0.3 -IPv4PreferredDNSServer 1.53.0.191

Cmdlet	Set-VMReplication
Description	This cmdlet configures the replication relationship for a virtual machine. If the virtual machine is already configured for replication, it modifies the replication relationship of the virtual machine.
Verb-Noun	Set-VMReplication
Syntax	Set-VMReplication [-VMName] [-ComputerName ] [[-ReplicaServerName] ] [[-ReplicaServerPort] ] [[-AuthenticationType] ] [-AsJob] [-PassThru] [-Reverse] [-AutoResynchronizeIntervalStart ] [-AutoResynchronizeIntervalEnd ] [-InitialReplicationStartTime ] [-AsReplica] [-RecoveryHistory ] [-ExcludedVhdPath ] [-ExcludedVhd ] [-CertificateThumbprint ] [-CompressionEnabled] [-ApplicationConsistentSnapshotFrequency ] [-DisableAppConsistentReplication] [-AutoResynchronizeEnabled]
Example	_Set-VMReplication -VMName CO-FIN-FS1 -ReplicaServerName hyp3.contoso.com -ReplicaServerPort 8080 -AuthenticationType Integrated -CompressionEnabled 1 -RecoveryHistory 0_

Cmdlet	Set-VMReplicationAuthorizationEntry
Description	This cmdlet edits an existing authorization entry for the Replica server. This cmdlet can be used to modify the following - ReplicaStorageLocation, KeepPrimaryStorageLocation, and SecurityTag for an existing "AllowedPrimaryServer".
Verb-Noun	Set-VMReplicationAuthorizationEntry
Syntax	Set-VMReplicationAuthorizationEntry [-AllowedPrimaryServer] [[-ReplicaStorageLocation] ] [-KeepPrimaryStorageLocation] [-ComputerName ] [-PassThru]
Example	_Set-VMReplicationAuthorizationEntry -AllowedPrimaryServer hyp3.contoso.local -ReplicaStorageLocation d:\ReplicaStorage_

Cmdlet	Set-VMReplicationServer
Description	This cmdlet is used to provision the replica server, including specification of server authentication and the default storage location to be used. Multiple types of authentication could be allowed for the replica server. If certificate based authorization is chosen, then the certificate thumbprint is required. You can also choose to enable replication from any servers thereby adding a * entry in the Authorization list
Verb-Noun	Set-VMReplicationServer
Syntax	Set-VMReplicationServer [-KeepPrimaryStorageLocation] [-ReplicationEnabled] [[-AllowedAuthenticationType] ] [-ReplicationAllowedFromAnyServer] [-ComputerName ] [-MonitoringStartTime ] [-MonitotingInterval ] [-CertificateAuthenticationPort ] [-CertificateThumbprint ] [-PassThru] [-IntegratedAuthenticationPort ]
Example	_Set-VMReplicationServer -ReplicationEnabled 1 -AllowedAuthenticationType Integrated -IntegratedAuthenticationPort 8080 -DefaultStorageLocation d:RecoveryData -ReplicationAllowedFromAnyServer 1_

Cmdlet	Start-VMFailover
Description	This cmdlet is used in multiple contexts - Planned Failover, Failover, and Test Failover.
Verb-Noun	Start-VMFailover
Syntax	Start-VMFailover [-VMName] [-Prepare] [-ComputerName ] [-PassThru] [-AsJob] Start-VMFailover [-VMName] [-VMRecoverySnapshot] [-Prepare] [-PassThru] [-AsJob] Start-VMFailover [-VMName] [-ComputerName <String[]>] [-PassThru] [-Prepare] [-AsJob] [-AsTest]
Example	Planned Failover Planned Failover is a workflow, and requires a series of cmdlets to be run in a particular order. Some cmdlets need to be run on the primary server, while others on the Replica server. Run the cmdlets in the following order: 1. On the primary server: 1. *a. Stop-VM –VMName CO-FIN-FS1* (Shuts down the VM) 2. _New-VMReplicationAuthorizationEntry hyp3.contoso.com -ReplicaStorageLocation d:\ReplicaStorage DEFAULT _(Ensure current primary server/cluster allows current replica server/cluster to replicate. If the current primary server already authorizes the current replica server to send replication data, then this step (1b) can be skipped) 3. _Start-VMFailover -VMName CO-FIN-FS1 –prepare _(Replicates any unreplicated changes) On the Replica server: 1. _Start-VMFailover -VMName CO-FIN-FS1 _(Fails over the VM) 2. _Start-VMFailover -VMName CO-FIN-FS1 –reverse _(Resumes the replication in the reverse direction) 3. _Start-VM –VMName CO-FIN-FS1 _(Starts the VM) Failover** Start-VMFailover -VMName CO-FIN-FS1 -VMRecoverySnapshot Test Failover Start-VMFailover -VMName CO-FIN-FS1 -AsTest

Cmdlet	Start-VMInitialReplication
Description	This cmdlet is used to start initial replication of the virtual machine. This cmdlet serves 3 purposes - a. Starts Initial replication and Delta replication at the end of IR. b. Starts initial replication if the Initial replication was cancelled manually by an administrator c. Starts initial replication if the replication stopped due to some unrecoverable failure
Verb-Noun	Start-VMInitialReplication
Syntax	Start-VMInitialReplication [-VMName] [-ComputerName ] [-PassThru] [-DestinationPath ] [-AsJob]
Example	Online initial replication: Start-VMInitialReplication –VMName CO-FIN-FS1 Initial replication using external media: Start-VMInitialReplication –VMName CO-FIN-FS1 –DestinationPath “F:\ExportData” Initial replication seeding from backup copy on Replica server On Replica server _Set-VMReplication VM01 –AsReplica –AllowedPrimaryServer hyp3.contoso.local _ On primary server Start-VMInitialReplication –VMName CO-FIN-FS1 -UseBackup

Cmdlet	Stop-VMFailover
Description	This cmdlet allows the admin to cancel the ongoing failover of a virtual machine or the test failover for the virtual machine.
Verb-Noun	Stop-VMFailover
Syntax	Stop-VMFailover [-VMName] [-ComputerName ] [-PassThru]
Example	_Stop-VMFailover –VMName CO-FIN-FS1_

Cmdlet	Stop-VMInitialReplication
Description	This cmdlet is used to cancel the online Initial Replication that is going on. This cmdlet can also be used to cancel the ongoing export/import of OOB IR.
Verb-Noun	Stop-VMInitialReplication
Syntax	Stop-VMInitialReplication [-VMName] [-ComputerName ] [-PassThru]
Example	_Stop-VMInitialReplication -VMName CO-FIN-FS1_

Cmdlet	Stop-VMReplication
Description	This cmdlet is used to cancel the resync Replication that is going on.
Verb-Noun	Stop-VMReplication
Syntax	Stop-VMReplication [-VMName] [-ComputerName ] [-PassThru]
Example	_Stop-VMReplication -VMName CO-FIN-FS1_

Cmdlet	Suspend-VMReplication
Description	This cmdlet pauses replication in the virtual machine that is passed as input.
Verb-Noun	Suspend-VMReplication
Syntax	Suspend-VMReplication [-VMName] [-ComputerName ] [-PassThru]
Example	_Suspend-VMReplication -VMName CO-EXEC-DATA1_

Cheers,

Marcos Nogueira azurecentric.com Twitter: @mdnoga
